Wide Load Pallet Hook

Wide Load Pallet Hook

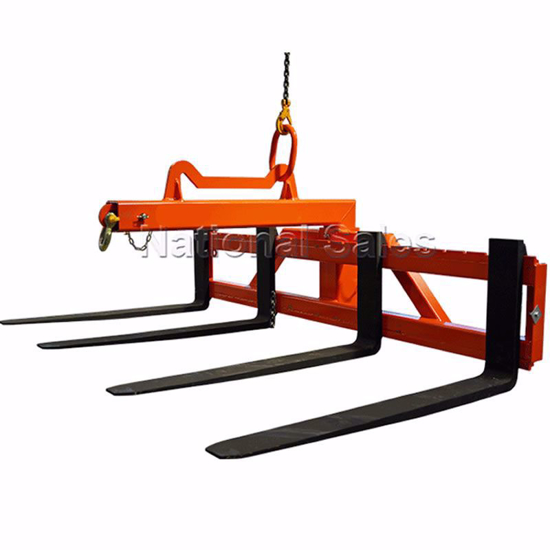

The EW-PHW Wide Load Pallet Hook is designed & certified in accordance with Australian Standard AS 1418.1 to safely handle palletised goods when being lifted by overhead crane.

Features:

• Used for lifting wide loads such as plasterboard, timber and roof sheeting
• Adjustable body height and fork tine width to suit varying load sizes
• Load is balanced by moving the lifting ring between the loaded or unloaded positions
• Additional lug used for inverting load to ease unloading of long materials
• Made with high tensile steel for maximum strength
• Ideal for the manufacturing, transport and construction industry
• Enamel paint finish

Specifications:

• Working Load Limit (WLL): 1500kg
• Load Centre: 675mm
• Inside Clearance: 715mm
• Clear Length Fork Tines: 100 x 45 x 1200mm
• Unit Weight: 210kg
